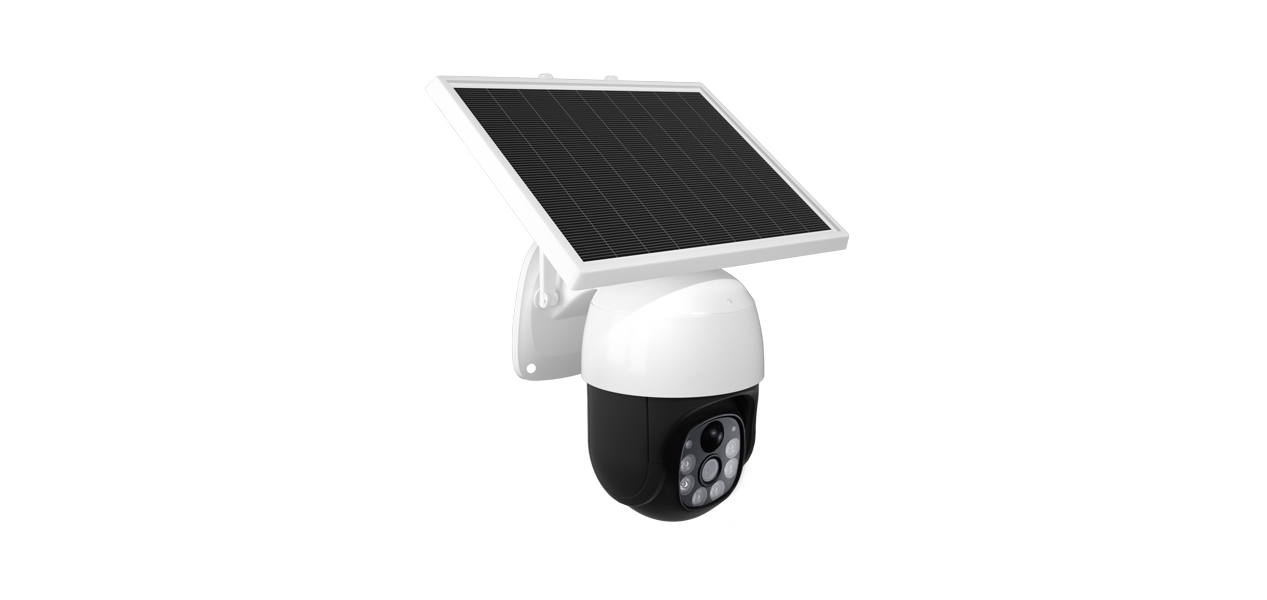

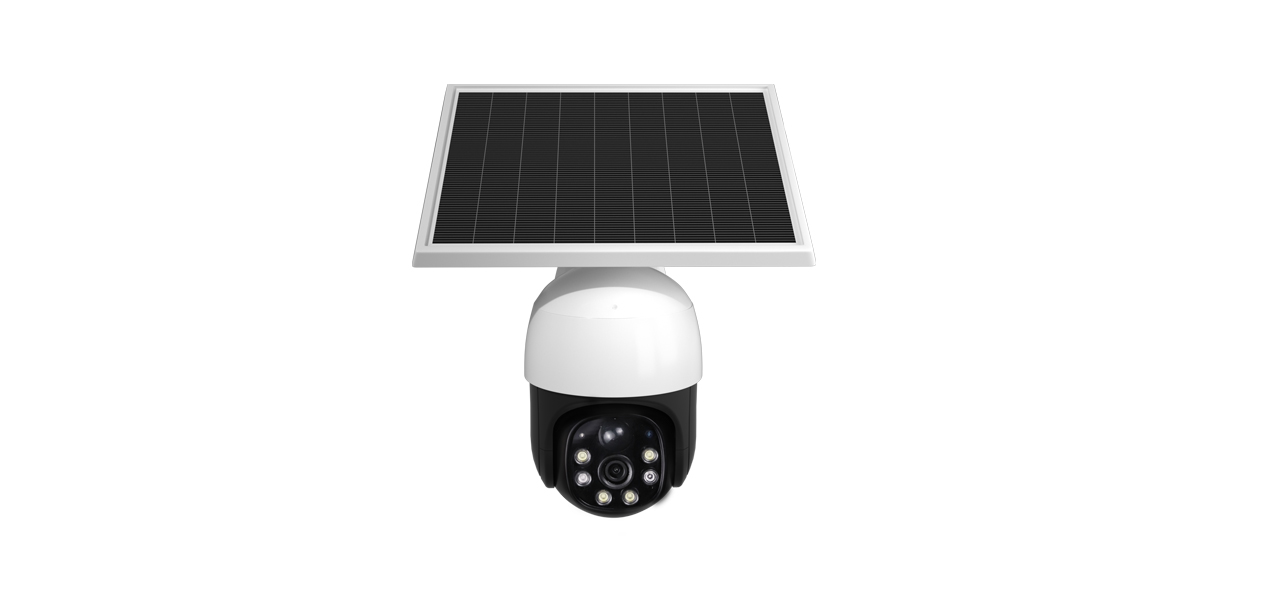

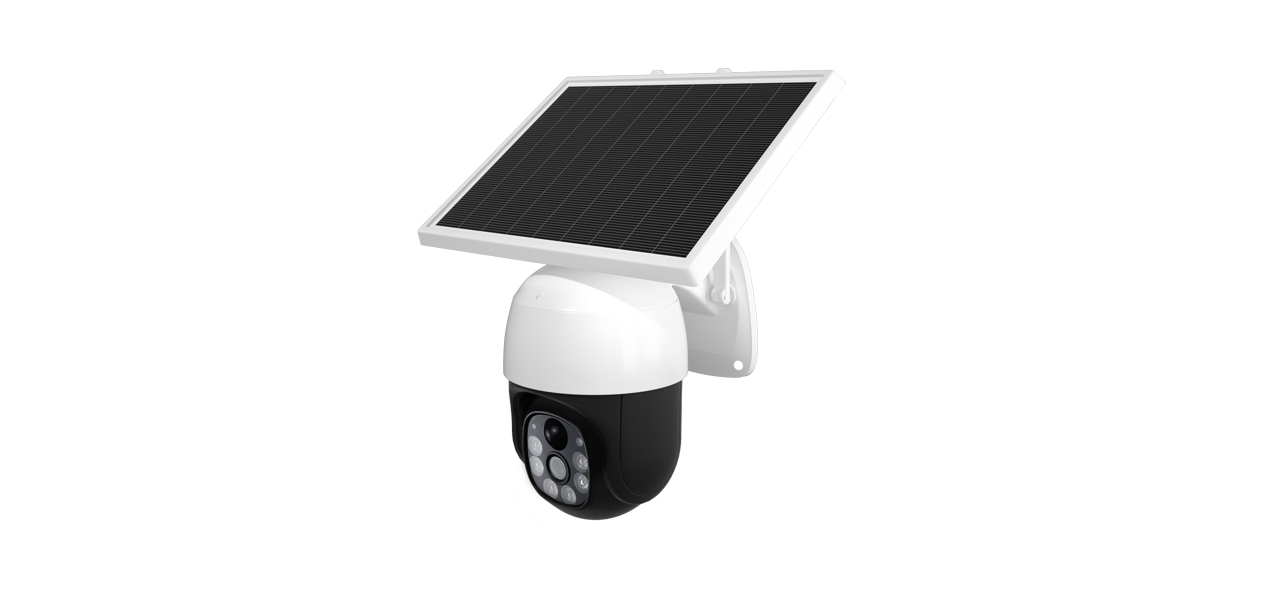

AC90-WIFI

Camera

Image Sensor: 1/2.9" COMS sensor
Resolution: 2MP 1080P
Effective Pixels: 1920(H)*1080(V)
Compression: H.265
Electronic Shutter Time: Auto（1 / 12s~1 / 100000s）
S/N Ratio: 40dB
Scanning System: Progressive
Video Output: Wireless network
Reset Button: Yes

PTZ

Horizontal Rotation Range: 0~270°
Tilt Rotation Range:0~90

LENS Type

Focus Length:3.6mm F2.3
Focus Control: Fixed
Lens Type:Fixed
Pixels: 2M Pixels

Night Vision

Infrared LED:14µ x 2pcs Infrared Array + 4pcs LED White
Infrared Distance:10-15m (Depending On Environment)
IR Status:CDS Auto Contro
IR Power On:Auto Control

Network

Ethernet:/
Protocol:TCP/IP、UDP、HTTP、DDNS、DHCP、FTP、NTP
ONVIF:/
P2P:Support
4G:/
POE:/
Main Stream 1:1920*1080@15fps
Main Stream 2:/
Main Stream 3:/
Sub Stream 1:640*360@15fps
Sub Stream 2:/
Sub Stream 3:/
Tri Stream:/
IE Brower:/
Smart Phone:support

Wireless

Antena:5dbi
Hotspot:Support
Wi-Fi:Wi-Fi(IEEE802.11b/g/n)
WIFI Range:No obstacles 180

Camera Features

Day/Night:Color/ B&W (IR-CUT)
Minimun Illumination:0.01 Lux
Image Config:YES
Corridor Pattern:/
ROI:/
Defog Mode:/
BLC:/
HDR:/
3DNR:Support
DWDR:Support
Motion Detection:Support
Privacy Masking:/
Recording Mode:SDcard
Language: Chinese, English

Function

Audio:2-Way Audio
Alarm:Motion Detection 、PIR human body infrared detection 、
Humanoid AI detection, personnel intrusion detection
SD Card Slot:Support Max 128G

General

Housing:plastic, IP6
Bracket:Support
IR Cut Filter:YES
Power:DC 5V/2A or 18650 battery po
Operation Temperature: 0℃ ~ +40℃ RH9
Storage Temperature: -10℃ ~ +50℃ RH95% M
Size: 224(W)x209(H)x139(D)mm
